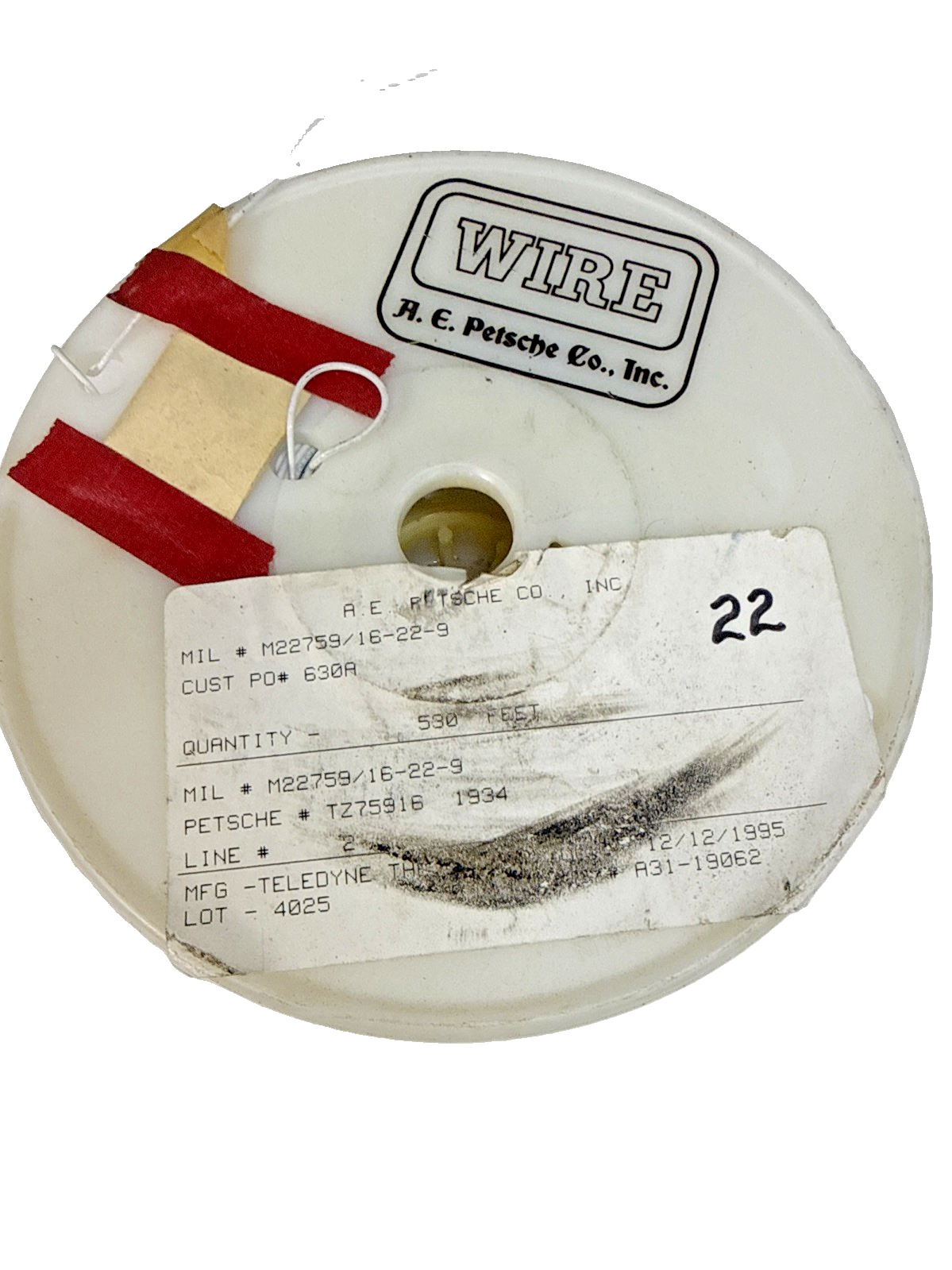

M2275916–20 2–9 Aircraft Electrical Wire 2 Pounds NEW

Condition: Used

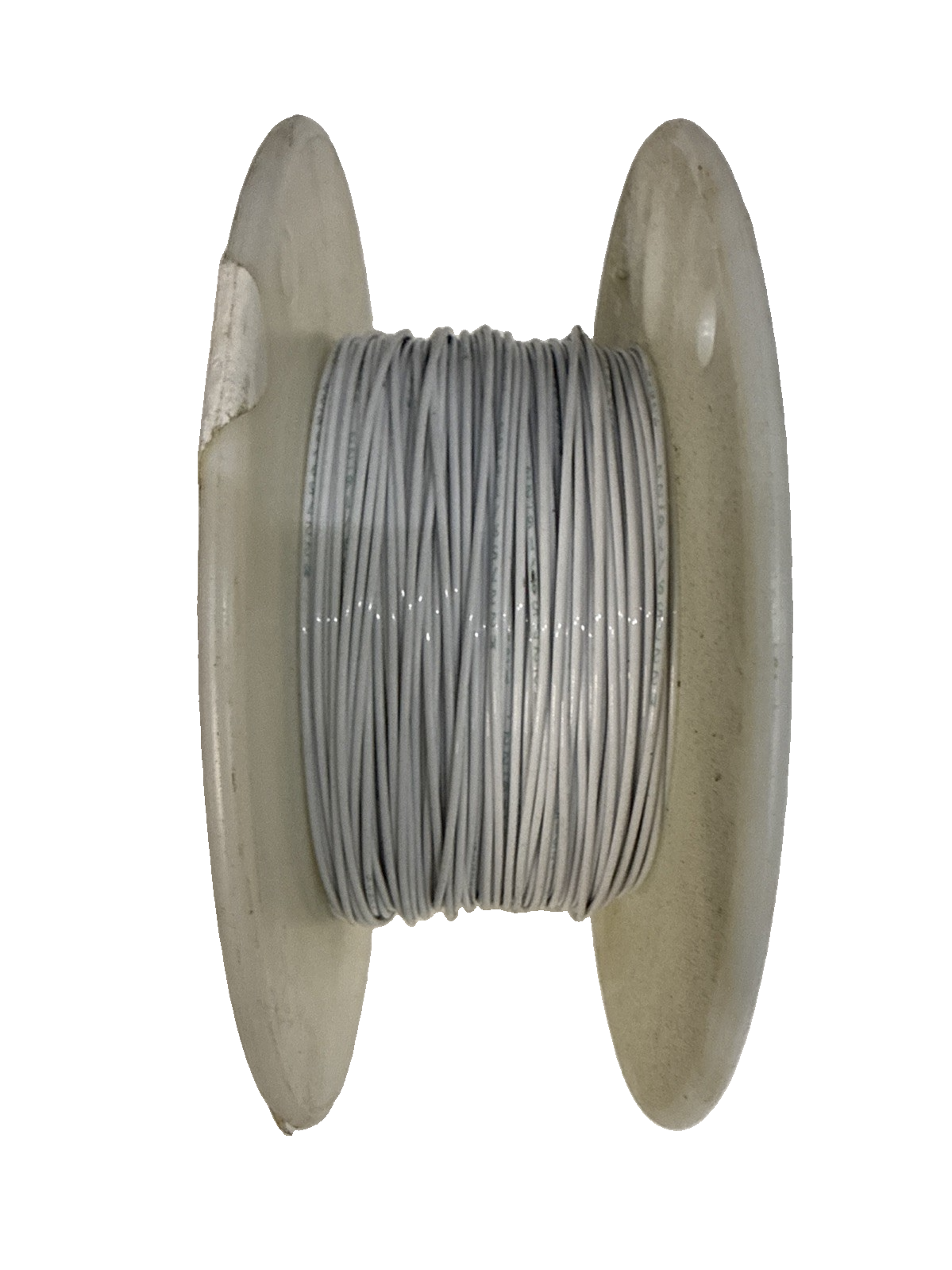

Condition Description: Partial Roll Approx 100 Feet

Brand: AE Petsche

Warranty: No Warranty

Manufacturer Part Number: M2275916–20 2–9

Specification: MIL-W-22759/16, SAE AS22759/16
Conductor: Tin-plated copper, 20 AWG (19/32 stranding)
Insulation: Extruded ethylene tetrafluoroethylene (ETFE / Tefzel), single-layer standard wall
Voltage Rating: 600 V
Temperature Rating: −55°C to 150°C (−67°F to 302°F)
Color Coding: Based on MIL-STD-104 / standard part suffix (e.g., -9 designates White, while -2 designates Red, and combinations indicate secondary stripes like 2/9 for red and white)
Application: General-purpose aircraft wiring harnesses, control systems, and military/FAA-compliant hook-up applications replacing older PVC wire (MIL-W-5086A)
